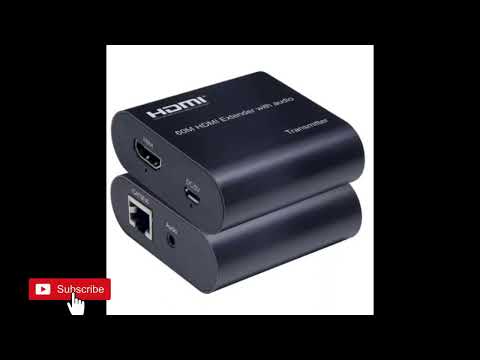

Hdmi extender for cctv camera dvr nvr , setup box dtv, tv extend the hdmi signal upto 60 meters

Introduction:

This Extender uses a single cat5e or cat6 (recommended) cables instead of HDMI cable to transmit high definition
signal up to 60 meters, cutting down the cost ;
This Extender is designed to supply for long distance transmission of high definition signal.


Features:
Support 60m long distance transmission: CAT 5E/ Cat 6 Cable(60M)
Low power consumption, low temperature and high safety


Specifications:
Length of CAT5e/CAT6 cable between Rx and TX:60 meters
HDMI Input:1080p/720p/576p/576i/480p/480i
HDMI Output:1080p/720p/576p/576i/480p/480i
Max bandwidth:150MHz
Max baud rate:4.5Gbps
Input video signal:0.5~1.5V
Output DC signal:5V
Input HDMI cable distance:≤10m AWG26 HDMI standard cable
Output HDMI cable distance:≤15m AWG26 HDMI standard cable
TX Max working current:300mA
RX Max working current:300mA
Power adapter format:Input:AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A


Connecting and Operating:
1.Connect one HDMI cable between source device and TX Extender, the max cable distance is 10 meters
2.Connect one HDMI cable between display device and RX Extender, the max cable distance is 15 meters
3.Connect single cat-5e or cat-6(recommended) cables instead of HDMI cables between TX and RX Extender,
the max cable distance is 60 meters
4.Connect 5V power supply to the TX and RX.
5.LED indicator light TX LED indicator light: When there is no signal input, it turns blue;
When there is signal input, it turns red,and keep flashing.RX LED indicator light: When there is no signal input,
it turns blue;When there is signal input, it turns red,and keep flashing.
6.EDID button:The button can support the switch of EDID between 1080P and 720P.
(1080P is the default EDID when the power is on).
